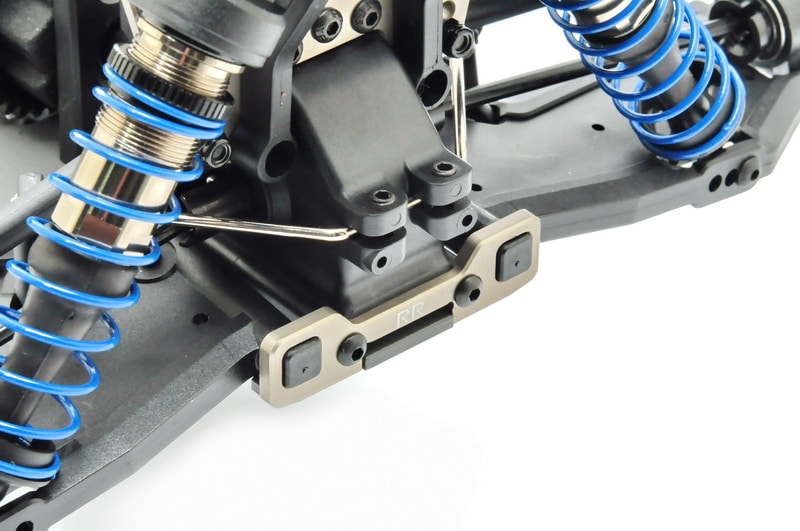

HB-TT2E-C60BU　HOBAO 1/10 HYPER TT2.0 PRO ELECTRIC TRUCK RTR, BLUE BODY

[ELECTRIC]
Radio: 3-channel 2.4GHz FHSS with dual rate steering and throttle, charge jack on transmitter for optional NiCd batteries
Servo: High output ball bearing, metal gear, digital, 18kg-cm torque
Motor: 3900Kv brushless, 4 pole, Outer Diameter Ø36mm, Shaft Ø3mm
ESC: HobbyWing 60A waterproof ESC with single Deans plug battery connectors, cooling fan, program card

[FEATURES]

All Metal Parts CNC Machined.
Chassis: Lightweight, Hard anodized CNC aluminum, 3mm thick.
Center Top Brace

• Wire pass through.

Drive:

• Central: Single Ø4mm Hardened steel center driveshaft.
• Optional Alum driveshaft  #OP1-0072.
• Front: CVA axles,  Ø3.2mm Hardened steel.
• Rear: Dogbone axles, Ø3.2mm Hardened steel.


Differentials:

• Center diff is directly connected to rear diff.
• Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
• Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1)
• Center Spur Gear:  40T (MOD 1)
• Front differential filled with #5K silicone oil.
• Center differential filled with #5K silicone oil.
• Rear differential filled with #3K silicone oil.


Shocks:

• Filled with #600 silicone oil.
• Alum 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
• Spring:
  -. Front: 0.86kg/cm, L=50mm, Blue
  -. Rear: 064kg/cm, L=65mm, Blue
  -. Optional Front Spring #OP1-0073: 1kg/cm, L=50mm, Grey
  -. Optional Rear Spring #OP1-0074: 0.73kg/cm, L=65mm, Grey
  -. Shock Tower: 3mm CNC alum
  -. Optional carbon fiber shock tower, Front tower #OP1-0070 & Rear tower #OP1-0071


Suspension:

• Front PBS
• Optional alum steering block set #OP1-0077; Alum rear hub #OP1-0079

• New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the TT10)
• Optional carbon fiber arm insert #OP1-0068 and #OP1-0069


• Front & rear anti-roll bars.
• Front and rear CNC alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles

Steering:

• New Steering Crank set with CNC alum rack and hard spring.
• Ball bearing equipped with servo saver


Battery tray:

Motor Gear: 13T (MOD 1)
Spur Gear: 40T (MOD 1)
Motor Mount:

• CNC alum laydown motor mount.
• Fitting for motors with size below 38mm.
• Spur gear cover.

Tires: Pin-spoke tires

Wheel Hex Hub:

• Front 12mm wheel hex hubs , Plastic.
• Rear 12mm wheel hex hubs, +1mm , Plastic.
• Optional Front wheel hex hubs #OP1-0075; Rear wheel hex hubs #OP1-0076.

Wheels:

• 5-Spoke wheels, white, 12mm Hex
• Optional yellow wheels #11106Y/ Pre-Mounted Tires on yellow Wheels #11105Y

Ball Bearings: Full set included
Body:  Blue Paint or Sliver Paint
Caster: Adjustable.
Camber: Adjustable.

[SPECIFICATIONS]

[REQUIREMENTS]

• LiPo batteries with single Deans Connector.
• Battery Charger
• AA Batteries for Transmitter (4)
